Drawn for Glaziers

HopShop Drafting provides fast, accurate, field-ready shop drawings for the glazing industry. We specialize in aluminum systems including:

- Storefront

- Curtain Wall

- Window Wall - Doors

- Arch Windows

- All Glass Entrances (Herculite Systems)

Our drawings are built for glaziers:

clear, precise, and ready for the field.

SYSTEM TYPES

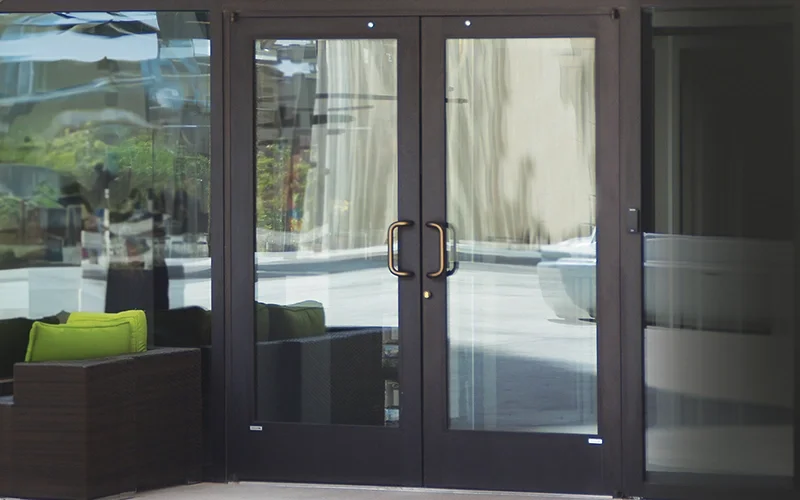

aLUMINUM sWING eNTRANCES

Narrow, medium or wide stile? Standard 1-3/4"

or 2-1/4" thick. Thermal, Hurricane, Blast or

Heavy Duty. We've seen them all — we've drawn

them all.

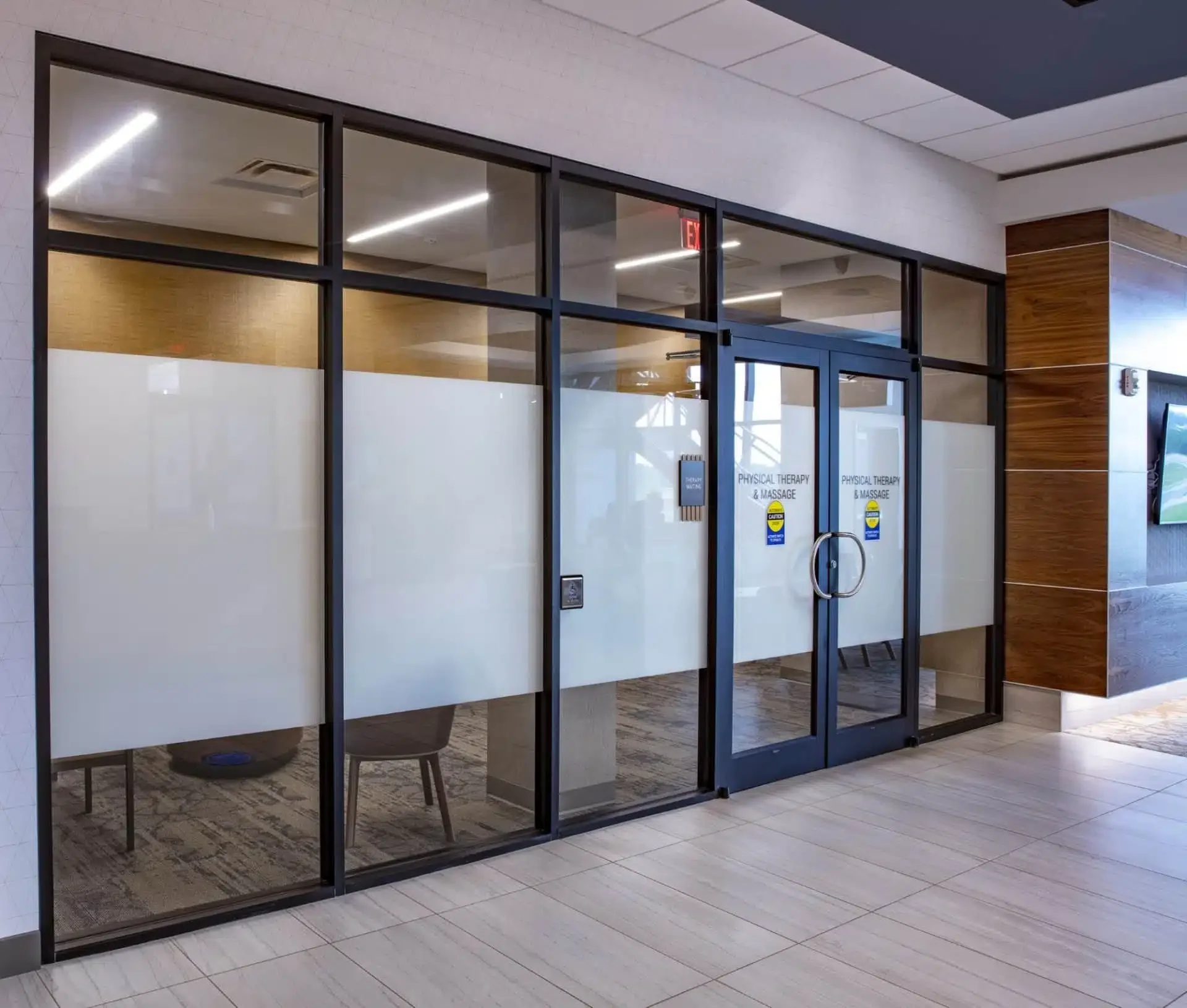

Storefront framing

1-3/4” x 4-1/2”? or 2" x 4-1/2"? maybe 2” x 6”?

Flush glaze or captured? Inside or outside glazed?

Single pane or double? Thermal/Non-Thermal? We

know storefront — inside and out.

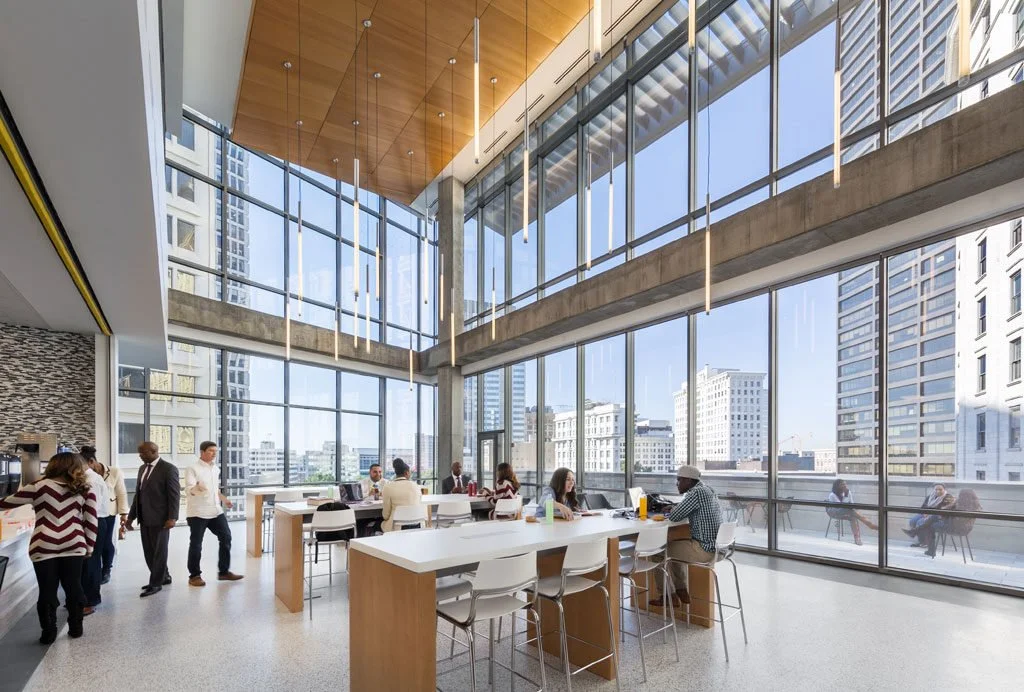

curtain wall framing

6”, 7-1/2”, 9” or 10-1/2”? Captured, structural silicone,

or 4-sided SSG? Stick built or unitized? Standard or

high performance thermal. Complex or simple

— we draw it right.

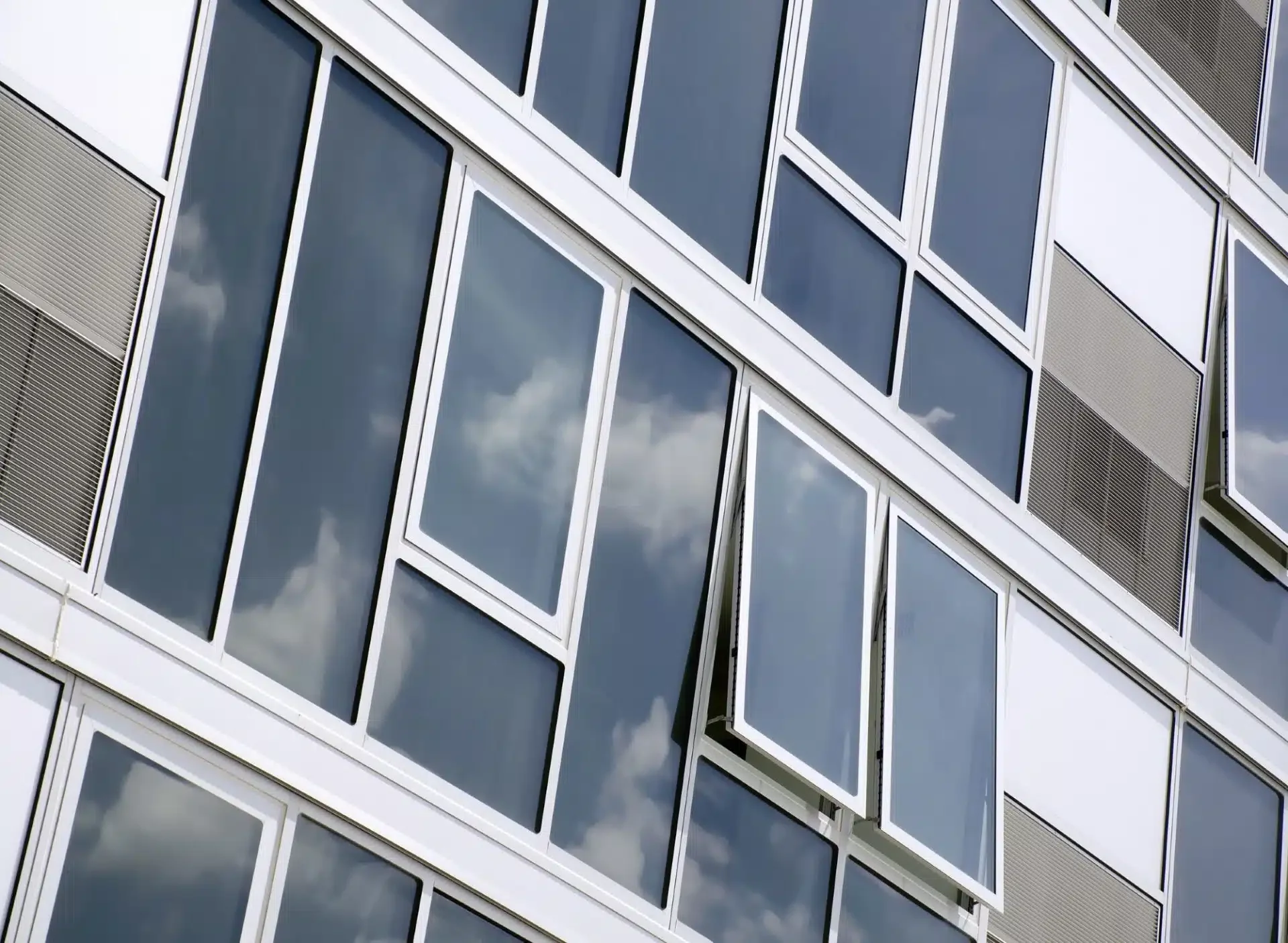

Fixed, projected, casement or awning?

Punched opening or ribbon? We draw

architectural windows with the detail your

shop requires.

Architectural aluminum windows

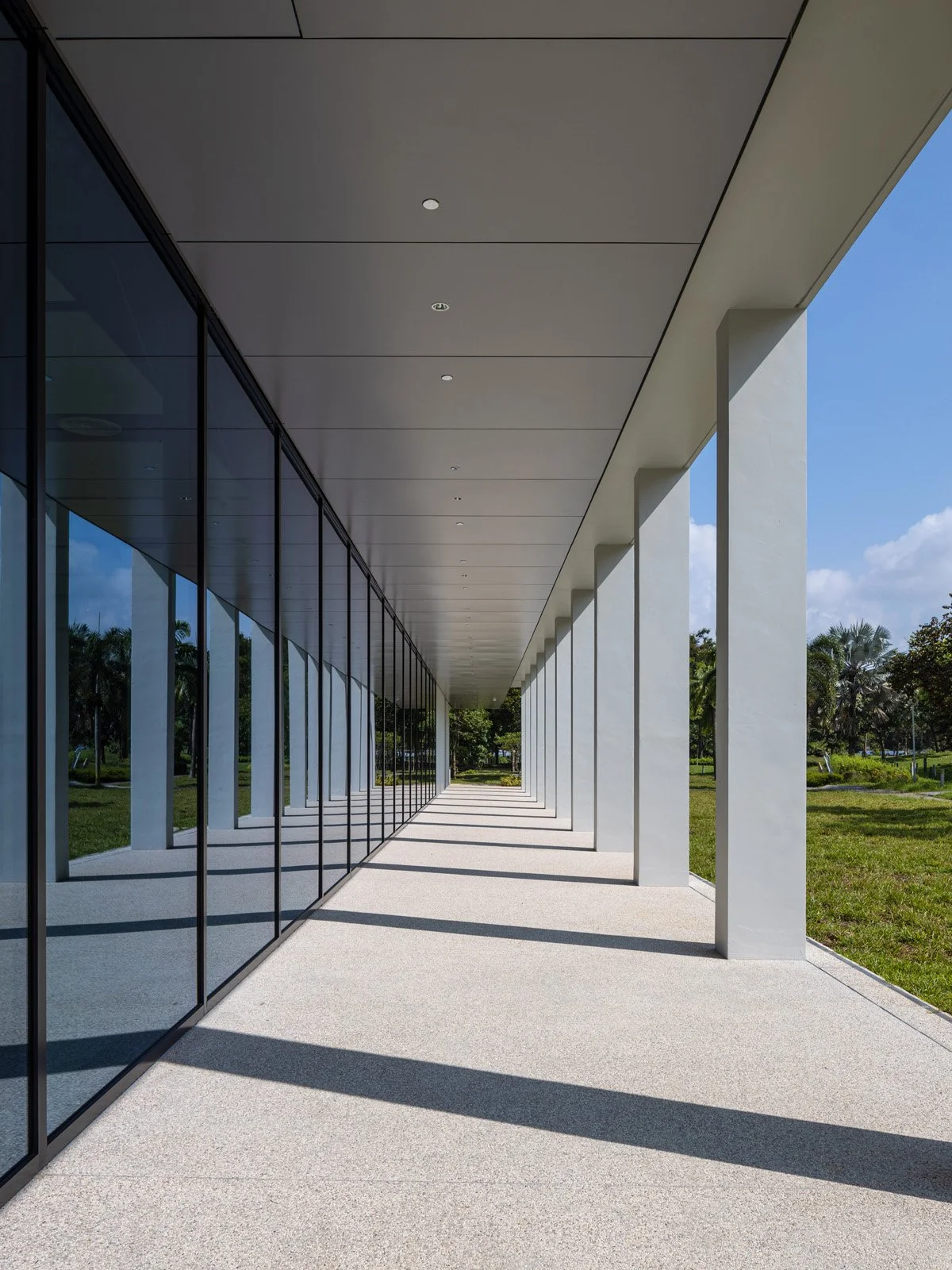

window wall framing

Floor to floor or sill to head? Innie or

outie? Pressure plate or toggle. We detail

window wall the way installers need to see it.

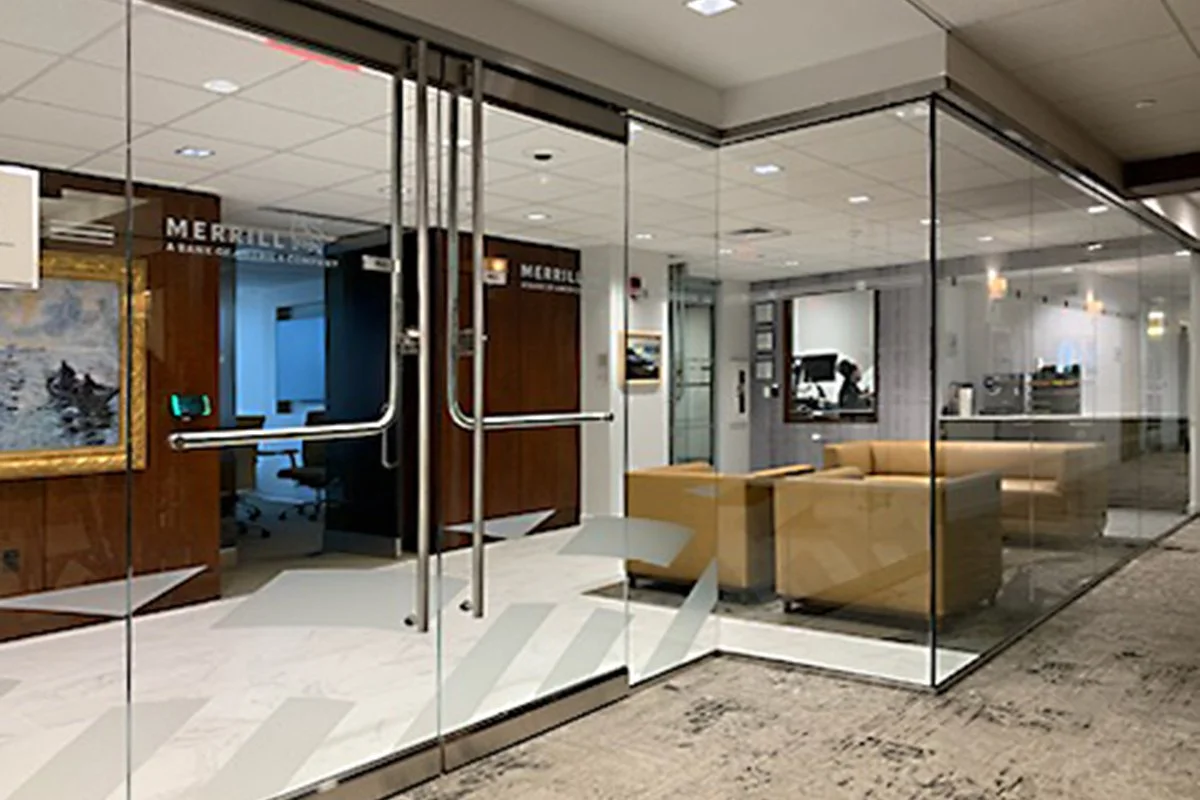

All Glass entrance systems

1/2”, 3/4" or 1" glass? Top hung or pivot?

Frameless or with header. CRL, Blumcraft

or Dorma — we've drawn them all.

Request a Shop Drawings Quote

Ready to get started? Send us your project details and we'll get back to you with a fast turnaround quote. We serve glazing contractors across the country.
